Postanka
Click to expand product sub-category
The Kee Safety POSTANKA range offers an alternative fixing method for example when the roof structure is unsuitable for KEELINE Top Fix anchors.
POSTANKA’S are designed to be installed directly to the building supporting structure, e.g. on traditional tiled sloping roofs, historical buildings or directly to concrete roof decks for KEELINE systems on green roofs or for abseil anchor points.
The POSTANKA range is designed for use with KEELINE or any other suitable horizontal flexible safety lines and conforms to the requirements EN 795 and BS 7883 Class C.
POSTANKA'S can also be used for supporting other products such as KEE WALK or solar panels where attachment to the roofs support beams is the best solution.
POSTANKA'S are designed using a standard calculation program and are manufactured to suit the clients specific application. Hot dipped galvanised to BS ISO EN 1461
Type 6 POSTANKA
The type 6 POSTANKA has a pedestal welded to a 15mm base plate, the design does not require any strengthening gussets so it makes it easy to weatherproof by an approved roofing contractor. Available with multiple fixing options including BEAMCLAMP, threaded bar and backing plate or suitable concrete fixings.
A Type 6 standard is available ideal for concrete mounting, 350mm high.

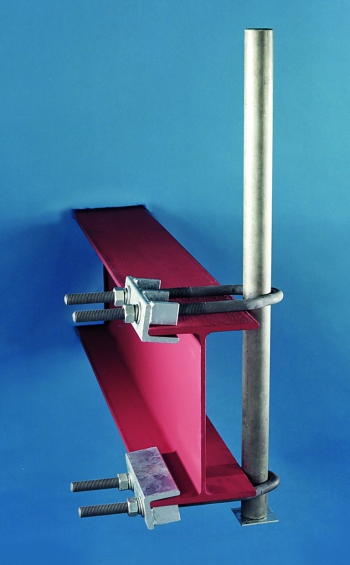

Type 3 POSTANKA for Steelwork
Type 3 POSTANKA for Timber
The Type 3 post clamps around suitable wooden or steel 'I' Beams and its design allows the pedestal height to to be adjusted, ideal for irregular support structures or roof constructions.
To provide a quotation the following site information is required:
- Quantity
- Detail of support beam
- Height of to the top of POSTANKA above mounting beam
- Fastener/fixing detail
- Loading
E.g. KEELINE Extremity/Corner post: 10kN
Single point anchor/KEELINE intermediate post: 6kN
Abseil anchor: 15kN
KEELINE FOR POSTANKA
Provides all of the components and fixings for attaching a EN795 Class C Horizontal Lifeline to POSTANKA'S or any other suitable anchor able to accept a M12 fastener.
