Fall Protection Engineering Works

Safe environment on metal roofs

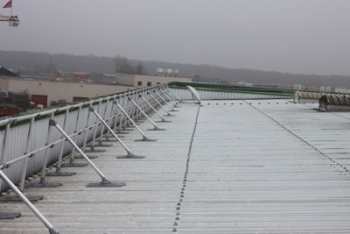

KeeGuard® Topfix provides a simple solution when collective protection is the preferred safety option for metal profile and standing seam roofs up to 45 degree pitch.

The specially designed powder coated base plate, which incorporates multiple fixing centres, allows installation to a wide range of popular roofs. Being an ‘off the shelf’ product, specification is simpler and it also removes the need to fabricate a different solution for each site, minimising site visits and down time.

Base plates for standing seam roofs are fixed using non-penetrative 2-part clamps and metal profile roofs are fixed with minimal penetrations using rivets and butyl sealing strip to maintain the roof’s integrity.

Being part of the KeeGuard® range KeeGuard®  Topfix allows for fast installation using preassembled uprights and open cup fittings and easily accommodates ridges, valleys, corners, changes in level and self closing gates etc. using standard Kee Klamp®  fittings.

The standard upright base fitting allows for 0-11 degree vertical adjustment and four fixing holes in the base plate allow it to be used in the most beneficial plane to suit the roof profile.

Available in both galvanised steel and aluminium finish.

Complies with the test requirements of BS EN 14122 part 3 and BS EN 13374 Class A, bay sizes for galvanised EN 14122 are 2.5m (1.75m end bays).

• Collective protection for metal roofs
• Modular ‘off the shelf’ system
• Available in galvanised steel or aluminium finish
• Non-penetrative solution for standing seam roofs
• Watertight fixings for metal profile roofs
• Complies with the test requirements of EN 14122 pt.3 and EN 13374 Class A
